Asphalt Mixing Plant Introduction
Roads have been the vital arteries of human civilization since ancient times, facilitating mobility and connecting distant lands. As civilizations evolved, so did the methods of road construction.
One crucial element in modern road construction is asphalt, a material renowned for its durability and ability to withstand the rigors of heavy traffic and harsh weather conditions. At the heart of producing high-quality asphalt lies the asphalt mixing plant.
Definition and Purpose of an Asphalt Mixing Plant
An asphalt mixing plant, also known as a hot mix plant or simply a batching plant, is an indispensable machine that plays a pivotal role in producing asphalt for road construction. It consists of various components that blend aggregates like sand, gravel, and crushed stone with liquid bitumen to create the final product – hot mix asphalt (HMA).
The process involves precise proportions and thorough mixing to achieve uniformity in composition and ensure optimal performance. The primary purpose of an asphalt mixing plant is to produce HMA in large quantities efficiently.
Road authorities and contractors rely on these plants to provide them with a steady supply of quality asphalt mixes capable of withstanding heavy traffic loads while maintaining their integrity over time. A well-designed and properly operated asphalt mixing plant guarantees the production of consistent HMA batches that meet or exceed specified standards set by regulatory bodies.
Importance of Asphalt in Road Construction
Asphalt has emerged as one of the most widely used materials for road construction due to its exceptional properties. Its flexibility allows it to withstand temperature fluctuations without cracking or deforming significantly. Additionally, it offers excellent resistance against water infiltration, ensuring longevity even in regions with frequent rainfall or melting snow.
Roads constructed with superior quality asphalt provide smooth driving surfaces that reduce vehicle wear-and-tear while offering better traction and improved safety for motorists. Furthermore, asphalt pavements contribute to a quieter environment by reducing noise from tire contact.
These roads also exhibit excellent skid resistance, minimizing the chances of accidents, especially during wet conditions. Moreover, the recyclability of asphalt makes it an environmentally friendly choice.
When pavements reach the end of their service life, they can be milled and recycled back into new asphalt mixes, reducing the demand for virgin materials. This not only conserves natural resources but also decreases waste generation and landfill usage.
Understanding the significance of asphalt mixing plants and their role in producing high-quality asphalt is crucial in comprehending the intricacies involved in road construction. As we delve deeper into this article, we will explore the components, working principles, types of plants, advanced technologies employed, environmental considerations addressed within these facilities, quality control measures implemented throughout production processes, and much more.
Overview of Asphalt Mixing Plant
Components of an Asphalt Mixing Plant
An asphalt mixing plant is a complex facility that combines various components to produce high-quality asphalt for road construction. These components work together seamlessly, ensuring the efficient and precise production of asphalt mixtures. Let us delve into the key components that constitute an asphalt mixing plant.
Cold Feed Bins
The cold feed bins act as storage units for different types and sizes of aggregates, such as stones, sand, and gravel. These bins typically have multiple compartments, allowing for the segregation and organization of various materials. Each compartment is equipped with adjustable gates or bin vibrators to control the flow rate and ensure accurate proportions during the batching process.
Conveyor Belts
Once the appropriate aggregates are selected from the cold feed bins, conveyor belts transport them towards subsequent stages in the production process. These belts are designed to withstand heavy loads while ensuring smooth transportation of aggregates without spillage or contamination. Ensuring proper maintenance and alignment is crucial to prevent any disruptions in material flow.

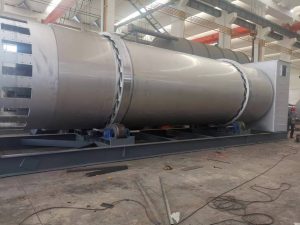

Drying Drum
The drying drum is a vital component where moisture from aggregates is eliminated before mixing with other materials. It consists of a rotating cylindrical drum equipped with special flights inside, facilitating efficient heat transfer through direct or indirect heating methods (such as hot gases or thermal oil). The drum’s high-speed rotation ensures thorough drying while preventing aggregate overheating or degradation.
Burner System
To provide heat energy for drying aggregates and maintaining optimal production temperature during mixing, an advanced burner system is employed in modern asphalt plants. Burners can utilize various fuels like diesel, natural gas, or heavy oil. They must be adjustable to accommodate changing fuel compositions and maintain precise temperature control throughout production.
Hot Aggregate Elevator
After the drying process, hot aggregates are lifted by a robust elevator system to be directed into the subsequent stages of asphalt production. This component ensures a continuous flow of heated aggregates, allowing for uninterrupted mixing and paving operations.
Vibrating Screen Deck
The vibrating screen deck separates the different-sized aggregates, ensuring uniformity in the final asphalt mixture. It consists of multiple screens with varying mesh sizes that vibrate to efficiently separate materials based on their particle size. By removing oversized or undersized particles, the screen deck enhances the quality and consistency of the asphalt produced.
Hot Bins and Weigh Hoppers
Hot bins provide temporary storage for hot aggregates before they are discharged into weigh hoppers. These bins often have multiple compartments to accommodate various aggregate sizes and types. The weigh hoppers accurately measure and control the precise amount of each aggregate required for optimal mix proportions.
Bitumen Storage Tanks
Bitumen storage tanks store and maintain the temperature of bitumen—the binder used in asphalt production—to ensure its availability when needed. These tanks are well-insulated to prevent heat loss or cooling during transportation from refineries or terminals.
Agitators inside these tanks help maintain homogeneity by preventing sedimentation or separation within the bitumen. An asphalt mixing plant incorporates numerous components, such as cold feed bins, conveyor belts, drying drums, burner systems, hot aggregate elevators, vibrating screen decks, hot bins and weigh hoppers, as well as bitumen storage tanks.
Each component plays a crucial role in producing high-quality asphalt mixes that meet stringent construction standards. Understanding these components’ functions paves the way for comprehending their interdependencies within an asphalt mixing plant’s intricate production process.
Working Principle of Asphalt Mixing Plant
Step-by-step Process Flow from Raw Materials to Final Product
Upon entering an asphalt mixing plant, the raw materials undergo a meticulously orchestrated process that results in the production of high-quality asphalt. This process can be divided into several key steps.
The first step is the cold feed system, where aggregates such as sand, gravel, and crushed stone are stored in separate bins. These aggregates are then conveyed onto a conveyor belt that transports them to the drying drum.
The drying drum is an essential component that removes moisture from the aggregates and heats them to a desired temperature. Once inside the drying drum, the aggregates start their gradual journey towards becoming hot mix asphalt (HMA).
As they move through the drying drum, they come into contact with heated air produced by a burner system. This combination of hot air and agitation within the rotating drum effectively dries and heats up the aggregates.
After leaving the drying drum, the hot aggregates pass through a vibrating screen deck that separates them into different sizes. This ensures uniformity in particle size distribution and enhances overall performance of the final product.
The properly sized aggregates then proceed to hot bins or weigh hoppers where they are stored temporarily until further processing. Next comes one of the most crucial stages – mixing bitumen with aggregates.
Bitumen is stored in dedicated tanks and injected into a blending unit or mixer along with accurately measured quantities of heated aggregates. The blending unit ensures thorough mixing between bitumen and aggregates to create a homogeneous mixture known as HMA.
Once thoroughly mixed, HMA is transported via an elevator system to storage silos or trucks for immediate use or onward transportation to construction sites. The entire process flow ensures efficient production of high-quality asphalt that meets various specifications for road construction projects.
Role of Each Component in the Production Process
An asphalt mixing plant comprises numerous components working in harmony to achieve the desired output. Understanding the role of each component contributes to a deeper comprehension of the overall production process. The cold feed bins store and regulate the supply of different types and sizes of aggregates required for asphalt production.
These bins ensure a continuous and controlled flow of aggregates, guaranteeing consistent quality in the final mix. The conveyor belts transport the aggregates from the cold feed bins to the drying drum.
The drying drum, fueled by a burner system, is responsible for removing moisture from aggregates while heating them to an optimal temperature. Its rotating motion ensures thorough exposure to heated air, ensuring complete drying before further processing.
The vibrating screen deck plays a crucial role in separating aggregates into different sizes. This separation allows for precise control over aggregate gradation, resulting in asphalt mixes tailored for specific construction requirements.
Bitumen storage tanks house bitumen at appropriate temperatures to maintain its viscosity before being blended with heated aggregates in the blending unit or mixer. This component ensures that bitumen is readily available and accurately injected into the mixing process.
Overall, each component within an asphalt mixing plant has a designated role that contributes to achieving optimal results. From aggregate handling and heating to blending with bitumen, these components work together seamlessly to produce high-quality asphalt mixtures ready for road construction projects.
Types of Asphalt Mixing Plants
Batch plants
A Symphony of Precision and Control
Batch plants are one of the two primary types of asphalt mixing plants, renowned for their precision-driven production process. These plants operate on a batch-by-batch basis, meaning that each mixture is produced separately in discrete batches. The operation begins with the cold feed bins, where aggregates are stored in different compartments according to their sizes.
These aggregates are then transported via conveyor belts to the drying drum, where they undergo thorough heating and drying. Once the aggregates reach the desired temperature, they are released into the burner system along with bitumen from storage tanks.
This fusion takes place in what can be described as a symphony of precision and control, as all components must harmonize to produce a consistent asphalt mix. Afterward, hot aggregate elevators carry the mix to vibrating screen decks for further separation and sizing before being stored in hot bins.
Advantages of batch plants lie in their ability to deliver a wide range of asphalt mixtures tailored to specific project requirements. Each batch can be precisely controlled for quality assurance and customization purposes.
Furthermore, these plants offer rapid setup times and allow easy switching between different mix designs during production runs. Despite their advantages, batch plants have some inherent limitations.
Due to their batch-wise operation, they may experience intermittent production gaps when transitioning between batches. Additionally, because each mixture is produced separately, there is increased potential for variations within consecutive batches if not meticulously managed.
Continuous plants
Seamless Production Uninterrupted by Time Constraints
In contrast to batch plants’ discreet approach to production, continuous asphalt mixing plants operate non-stop without interruption or gaps between batches. This continuous operation allows for a seamless flow from raw materials input to final product output.
Continuous plants utilize separate compartments for aggregate storage and feeding, ensuring a consistent supply of raw materials throughout the process. Aggregates are fed into the system via conveyors and gradually mixed with bitumen in a drum-like mixing chamber.
This continuous mixing process ensures a uniformly blended asphalt mix. The advantages of continuous plants are manifold.
Firstly, they offer remarkable production efficiency since there is no need to pause between batches, resulting in minimal production gaps. Secondly, the continuous operation provides greater flexibility regarding output volume adjustments and accommodates large-scale projects with ease.
However, continuous plants may require more complex infrastructure due to their uninterrupted operation. Their installation and setup might be more labor-intensive compared to batch plants.
Additionally, maintaining precise control over mix specifications can be challenging because of the constant flow of materials through the system. With these distinct characteristics, both batch plants and continuous plants have their own merits and considerations that must be carefully evaluated when selecting an asphalt mixing plant for specific projects.
A Warm Mix Asphalt (WMA) Technology
Unlocking Efficiency and Sustainability in Asphalt Mixing Plants
In recent years, the asphalt industry has witnessed a significant advancement in technology with the introduction of Warm Mix Asphalt (WMA). This innovative approach to asphalt production offers several noteworthy benefits that have revolutionized the industry. One of the most compelling advantages is its ability to reduce energy consumption and emissions during the manufacturing process.
By incorporating WMA technology into asphalt mixing plants, operators can achieve a substantial reduction in energy requirements, leading to lower fuel consumption and decreased greenhouse gas emissions. This not only contributes to a greener future but also results in cost savings for plant owners.
Furthermore, WMA technology enhances the workability of asphalt mixes. Traditional hot mix asphalt often requires high temperatures, making it challenging to achieve proper compaction and workability on construction sites during cooler weather conditions or at higher altitudes.
However, by employing WMA technology, which utilizes additives or foaming agents, it becomes possible to reduce the mixing and compaction temperatures without compromising performance or durability. The lower temperatures facilitate easier handling and placement of the mixture while maintaining optimal performance characteristics.
Recycled Asphalt Pavement (RAP) Utilization
Breathing New Life Into Old Roads: Unleashing the Potential of RAP
The utilization of Recycled Asphalt Pavement (RAP) has gained considerable attention as an effective means of sustainable pavement construction. Incorporating RAP into asphalt mixes not only conserves valuable natural resources but also presents numerous economic advantages. By reusing existing asphalt materials from old roads or pavements, there is a significant reduction in the need for new aggregate extraction and bitumen production.
Despite its numerous benefits, utilizing RAP poses some unique challenges. One such challenge is ensuring that incorporating RAP does not compromise overall quality and performance characteristics of the asphalt mix.
Proper techniques and practices must be implemented to achieve an optimal blend of RAP with virgin materials. This involves careful control of aggregate grading, binder content, and the use of rejuvenating agents to restore aged bitumen properties.
By overcoming these challenges, the industry can fully capitalize on the potential offered by RAP utilization. Its implementation not only contributes to sustainable construction practices but also provides cost savings in material acquisition and disposal.
Foam Bitumen Technology
A Revolutionary Breakthrough: Enhancing Performance and Durability
Foam bitumen technology represents a significant breakthrough in asphalt production that has revolutionized pavement performance and durability. This innovative technique involves injecting small amounts of water into hot bitumen, causing it to expand rapidly into a foam-like consistency before being mixed with aggregates. The foam process creates a highly uniform distribution of bitumen throughout the mixture, resulting in improved coating and adhesion properties.
The enhanced performance characteristics achieved through foam bitumen technology are remarkable. The foam acts as a stabilizer for the mixture’s aggregates, preventing segregation during transportation and placement while enhancing its resistance against moisture damage.
Furthermore, this technology allows for higher proportions of reclaimed asphalt pavement (RAP) to be incorporated into mixes without compromising performance or durability. Additionally, foam bitumen technology offers environmental benefits as it reduces energy consumption during production due to decreased mixing temperatures.
Moreover, the lower viscosity achieved through foaming allows for better compaction at lower temperatures, reducing fuel consumption during construction activities. Advanced technologies such as Warm Mix Asphalt (WMA), Recycled Asphalt Pavement (RAP) utilization, and Foam Bitumen Technology have transformed asphalt mixing plants into more efficient and sustainable entities.
Through WMA technology, energy consumption is reduced while workability is improved. RAP utilization brings economic benefits while contributing to environmentally friendly practices.
Foam Bitumen Technology enhances pavement performance while reducing energy consumption and allowing for greater utilization of reclaimed materials. Embracing these advancements propels the asphalt industry towards a greener and more efficient future.
Environmental Considerations in Asphalt Mixing Plants
Quality Control Measures in Asphalt Mixing Plants
Ensuring Consistency and Excellence in Production
Quality control is a paramount aspect of asphalt mixing plants to ensure the production of superior asphalt mixes that meet the required specifications. Several measures are implemented throughout the production process to maintain consistency and excellence.
One crucial step is conducting regular tests on raw materials, including aggregates, bitumen, and additives, to verify their quality before usage. Testing methods such as sieve analysis, specific gravity determination, and viscosity checks enable plant operators to identify any variations in material properties that may affect the final product.
Monitoring Production Parameters
To guarantee optimal mix performance, stringent monitoring of production parameters is essential. This involves continuously measuring and controlling variables such as aggregate gradation, bitumen content, temperature during mixing and compaction phases, moisture content of aggregates, and air voids in the final mix.
Specialized software integrated into modern asphalt plants assists operators in real-time tracking of these variables through sensors installed at various sections of the plant. Any deviation from set targets prompts immediate adjustments to maintain consistency and achieve desired quality.
Rigorous Testing of Final Product
Before dispatching asphalt mixes to construction sites or customers, rigorous testing must be performed to ascertain their compliance with specified criteria. These tests include but are not limited to Marshall stability test for evaluating load-bearing capacity, rutting resistance test using wheel tracking devices for assessing deformation behavior under traffic loads, and indirect tensile strength test to determine durability against cracking due to temperature variations. Additionally, various laboratory-based tests assess moisture susceptibility and aging characteristics of the mixtures.
Continuous Improvement Practices
Quality control measures must also encompass continuous improvement practices within asphalt mixing plants. Regular assessment of process efficiency helps identify areas for optimization that can enhance overall quality while minimizing waste generation or energy consumption.Furthermore, feedback from field performance of asphalt pavements constructed using the produced mixes provides valuable insights into the effectiveness of quality control measures. By incorporating these lessons learned, asphalt mixing plants can continually refine their processes and deliver even better quality products.
Conclusion
Asphalt mixing plants play a vital role in ensuring the durability and performance of road infrastructure. Through effective quality control measures, these plants maintain consistency in asphalt mixture production, adhering to required specifications and industry standards. Rigorous testing at various stages, monitoring production parameters, and continuous improvement practices ensure that the final product meets desired quality benchmarks.By employing state-of-the-art technologies and embracing sustainable practices, modern asphalt mixing plants pave the way for resilient road networks that withstand heavy traffic loads and adverse weather conditions. Investing in quality control measures not only guarantees superior asphalt mixes but also contributes to the overall sustainability of road construction projects.With a commitment to excellence and continuous improvement, asphalt mixing plants continue to evolve, embracing new technologies and environmentally friendly practices. As we move forward, we can be optimistic about the future of road infrastructure with enhanced materials that are both durable and eco-friendly.
